Product Description:
The 0.9m Mimosa B6x Twist-On 2-Pack includes two high-gain dish antennas in a single box for cost-effective shipping. Twist-on connectors attach directly to Mimosa B6x, B5x, C6x, and C5x radios, supporting point-to-point microwave backhaul links of 10–20 km. Both antennas are included in the price.

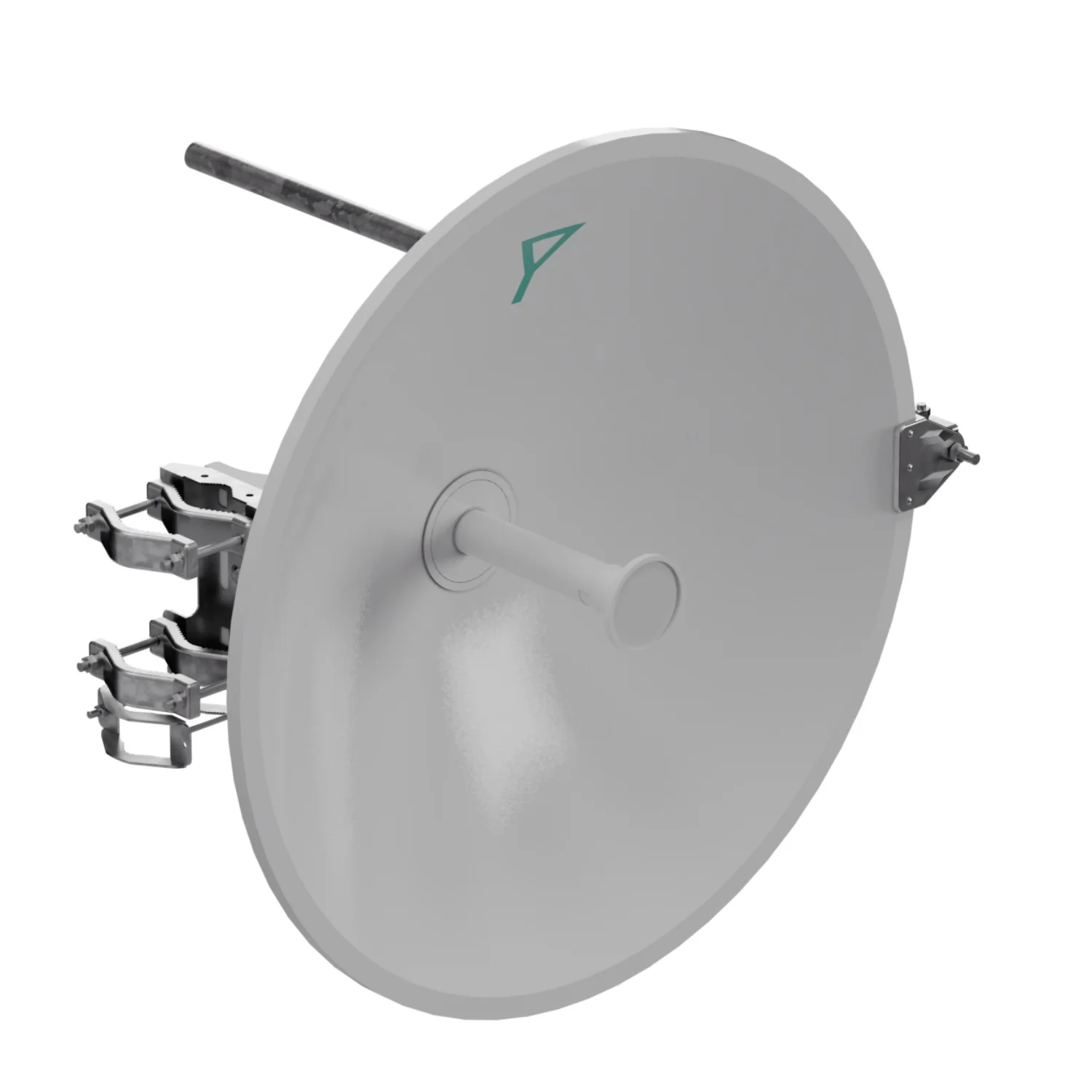

0.9m Dish Mimosa B6x Twist-on 2-pack
Model Number: 09M-DISH-MIMOSA-B6X-2PK
Designed for cost-efficient shipping and direct connection with Mimosa B6x, B5x, C6x, and C5x radios, this eliminates conversion losses for 10–20 km links. Both antennas are included in the price.
Features
- •Size: 0.9m (3-ft) (90 cm) (36 in)
- •Max gain: 33.4 dBi
- •Half Power (-3 dB) Beam Width: 3.1-2.7°
- •Cross-pol Discrimination XPD: 30 dB
- •Direct connection to B6x/B5x/C6x/C5x radios
- •Both antennas are included in the price.
Documentation
High-Gain 10–20 km PTP Links
The 0.9m Mimosa B6x Twist-On 2-Pack delivers a high-gain dish antenna solution designed for point-to-point (PTP) microwave backhaul with Mimosa X-connector radios. Engineered for 10–20 km links, these antennas offer focused beamwidth and strong performance, ensuring stable connections and high throughput for rural broadband, enterprise networks, and other applications that demand reliable connectivity
Narrow Beamwidth and SNR Advantage
Engineered to provide ample gain for optimal signal quality in low-noise settings, it ensures robust link performance and consistent throughput across distances. Its narrow beamwidth minimizes noise interference, enhancing SNR and maintaining stable performance over longer links.
Durable, Low-Maintenance Operation
The dish’s sturdy design ensures stable alignment and consistent performance even in changing weather. When properly installed and routinely inspected, it provides reliable long-range point-to-point throughput for years, with minimal maintenance and a lower total cost of ownership.
Direct Twist-On Connection for Mimosa X Radios
Twist-on connectors connect directly to Mimosa B6x, B5x, C6x, and C5x radios, eliminating conversion loss. This direct connection streamlines installation, minimizes signal loss, and ensures stronger end-to-end link performance.
Eliminates Cable and Conversion Loss
With an X-to-cable (X2C) adapter setup, the signal path incurs additional conversion losses. The Mimosa radio first converts the electrical signal to RF energy, then the X2C adapter converts it back to an electrical signal for coaxial transmission. The coaxial cable adds its own loss, and a second X2C adapter at the antenna converts the signal back to RF energy. Each of these conversions compounds the loss, reducing overall link efficiency.
Simplified Installation
The twist-on interface attaches directly to Mimosa B6x, B5x, C6x, and C5x radios, providing a simple antenna solution for X-connector deployments. Direct mounting eliminates extra interconnects and potential failure points, enhancing reliability and simplifying field installation for WISPs and integrators.
Remote Relay Sites
Featuring a high front-to-back ratio, the 0.9m dish reduces unwanted signal reception from behind, which is beneficial for remote relay sites and other less-crowded locations with cleaner RF environments. It does not include a shroud and isn’t a deep-dish design, so 90° side lobes can be more pronounced. Proper placement and adequate separation from nearby antennas help minimize interference, making this dish ideal for installations that aren’t densely co-located on crowded towers.
Lightweight and Easy to Deploy
Each package contains two 0.9m dishes, making shipping more cost-effective. The low-profile design, without a shroud or radome, keeps the antennas lightweight for easier handling and installation, supporting efficient backhaul deployments.
