Product Description:
1.2 m (4-ft) 5 and 6 GHz dish 2-pack designed for cost-effective shipping and direct connection to Ubiquiti Wave MLO6, Wave MLO5, AF5XHD, Cambium ePMP Force 4600c and Force 400c, and Mimosa C5c and B5c radios without conversion loss for links up to 20–40 km. Price includes both antennas.

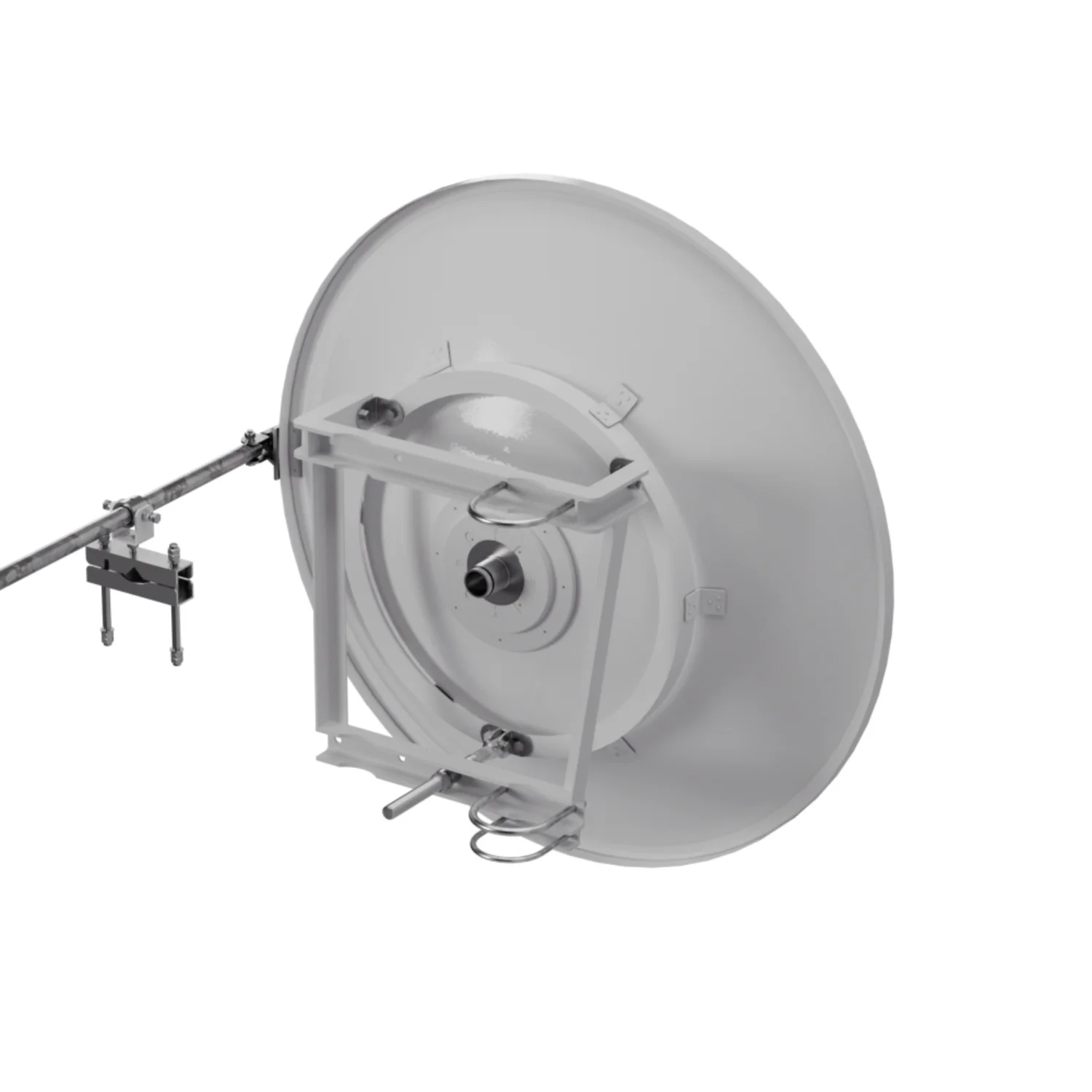

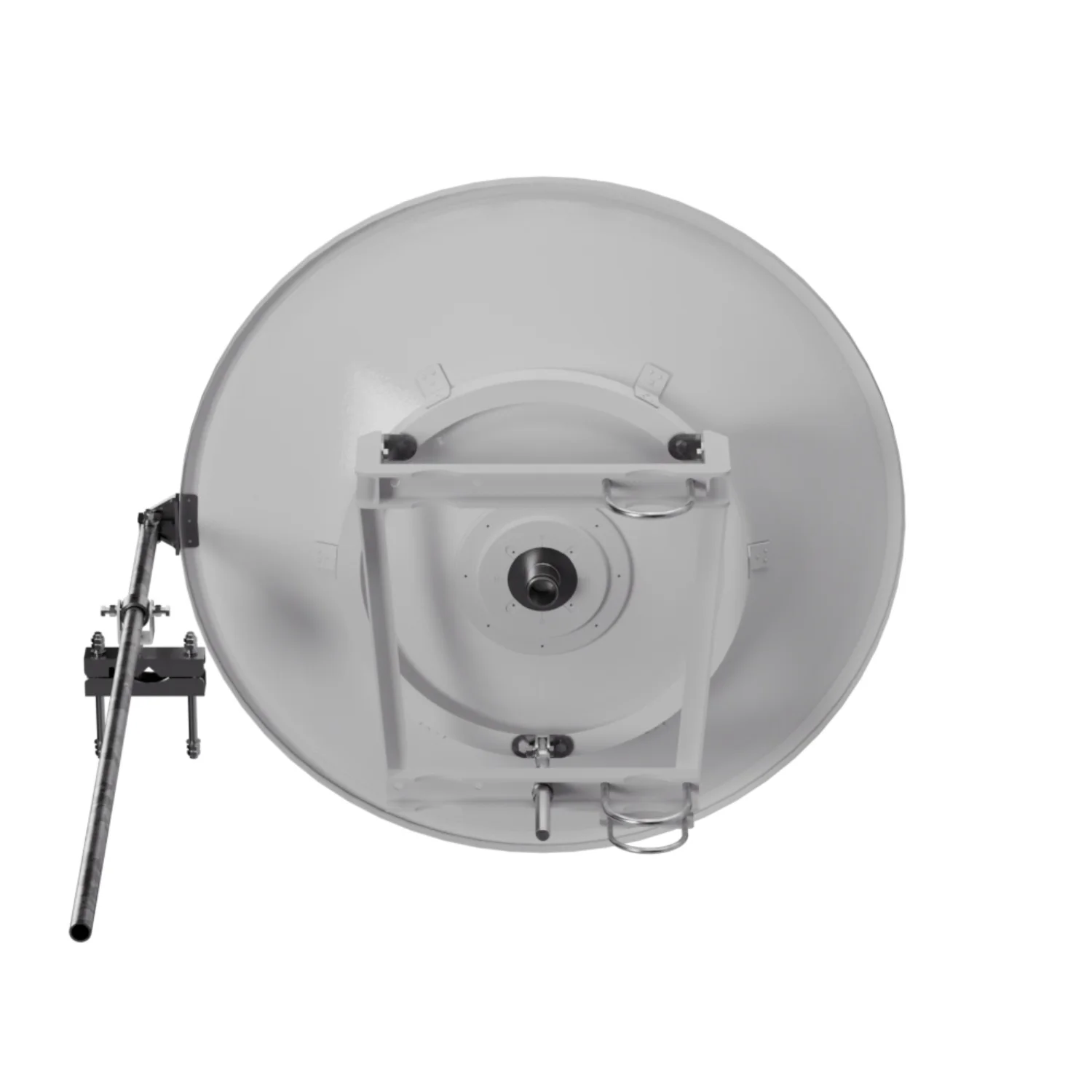

1.2m Dish RP-SMA 2-pack
Model Number: 12M-DISH-RPSMA-2PK
1.2 m (4-ft) 5 and 6 GHz dish 2-pack designed for cost-effective shipping and direct connection to Ubiquiti, Cambium, and Mimosa radios without conversion loss for links up to 20–40 km. Price includes both antennas.
Features
- •Size: 1.2m (4-ft) (122 cm) (48 in)
- •Max gain: 36.4 dBi
- •Half Power (-3 dB) Beam Width: 3.1-2.7°
- •Cross-pol Discrimination XPD: 30 dB
- •Direct connection to Ubiquiti Wave MLO6, Wave MLO5, AF5XHD radios
- •Direct connection to Cambium ePMP Force 4600c and Force 400c radios
- •Direct connection to Mimosa C5c and B5c with RP-SMA to N connector jumper cable
- •Ships in wooden crate pallet containing two dish antennas
Documentation
High-Gain 20–40 km PTP Links
The 1.2m RP-SMA dish 2-pack is a complete high-gain dish antenna solution built for long-range point-to-point (PTP) backhaul using RP-SMA connector radios from Ubiquiti, Cambium, and Mimosa and includes RP-SMA jumper cables. These antennas offer the appropriate gain for 20–40 km links and provide strong antenna performance with a narrow beamwidth to improve signal stability and throughput for rural broadband, enterprise connectivity, and other reliability-critical deployments.
Narrow Beamwidth and SNR Benefits
Designed to deliver sufficient gain for maximum signal quality in low-noise environments, it supports strong link performance and consistent throughput over distance. The narrow beamwidth helps reduce the impact of noise, improving SNR and maintaining stable performance on longer paths.
Durable, Low-Maintenance Operation
Its rigid dish structure supports stable alignment and consistent performance in changing weather conditions. With proper installation and routine inspection, it can deliver reliable long-range point-to-point throughput for years with minimal maintenance and reduced total cost of ownership.
Direct RP-SMA Connection for Ubiquiti, Cambium, and Mimosa Radios
RP-SMA connectors attach directly to compatible Ubiquiti, Cambium, and Mimosa radios to eliminate conversion loss. This direct attachment simplifies installation, reduces connection losses, and helps maintain stronger end-to-end link performance.
Simplified Installation
The RP-SMA interface connects directly to compatible Ubiquiti, Cambium, and Mimosa radios, making it a straightforward antenna option for RP-SMA connector deployments. Direct connection reduces unnecessary interconnects and potential points of failure, improving reliability and streamlining field deployment for WISPs and integrators.
Direct 5 and 6 GHz Radio Compatibility
Ubiquiti
• Wave MLO6
• Wave MLO5
• airFiber 5XHD / AF-5XHD
• airFiber X Series: AF-5X
• LTU Rocket
• airMAX Rocket Prism 5AC
• airMAX Rocket AC Lite
Cambium
• ePMP Force 4600C
• ePMP Force 400C
• ePMP Force 300 CSM
• ePMP Force 300 CSML
• ePMP 4500L
• ePMP 3000L
Mimosa
• C5c
Radio Compatibility with RP-SMA to N Connector Jumper Cable
Mimosa
• B5c (4.9–6.2 GHz)
Cambium Networks
• PTP 650 Connectorized (4.9–6.05 GHz)
• PTP 670 Connectorized (4.9–6.05 GHz)
• PTP 700 Connectorized (4.4–5.925 GHz)
• PTP 450b Connectorized / Radio Only (4.9–5.925 GHz)
• PTP / PMP 450v 2x2 Connectorized (5.15–7.125 GHz)
• PTP / PMP 450v 4x4 Connectorized (5.15–7.125 GHz)
LigoWave / Deliberant
• LigoPTP 5-N RapidFire (5 GHz)
• LigoPTP 6-N RapidFire (5.9–6.4 GHz)
• LigoPTP PRO 5-N (5 GHz)
• LigoDLB 5 / LigoDLB 5ac (5 GHz)
RADWIN
• RADWIN 2000 E Connectorized (4.9–7.1 GHz)
• RADWIN 2000 Alpha / Alpha PRO Connectorized (4.9–6.0 GHz)
• RADWIN 2000 D-Plus Connectorized (5 GHz)
• RADWIN 2000i (4.9–6.0 GHz)
Proxim
• Tsunami QuickBridge 10100L-EPA (4.9 / 5 GHz)
• Tsunami QB-8200 (5 GHz)
• Tsunami QB-8100 EPA (5 GHz)
EnGenius
• EOC655 (5 GHz)
• EOC655-C18 (5 GHz)
InfiNet Wireless
• Quanta 5 Connectorized (5 GHz)
• InfiLINK Evolution E5 / E6 Connectorized (4.9–6.425 GHz)
• InfiLINK 2x2 / R5000 Connectorized variants (4.9–6.4 GHz)
Ubiquiti
• Bullet M5 HP / Bullet M5 Titanium (5 GHz)
• Bullet AC / Bullet AC IP67 (5 GHz)
MikroTik
• Groove 52 / GrooveA 52 (5 GHz)
Alvarion
• BreezeNET B detached-antenna models (5 GHz)
• BreezeNET B130 / B300 connectorized (5 GHz)
Cisco
• Aironet 1400 Series Wireless Bridge (5.8 GHz)
Remote Relay Sites
With a strong front-to-back ratio, the 1.2m dish helps limit unwanted signal pickup from behind the antenna—an advantage for remote relay sites and other less-crowded installations where cleaner RF conditions are easier to maintain. It does not include a shroud and is not a deep-dish design, which can result in more prominent 90° side lobes. Careful placement and separation planning can help mitigate interaction with nearby antennas, making it best suited for deployments that aren’t heavily colocated on dense towers.
Lightweight and Easy to Deploy
Each box includes two 1.2m dishes for cost-effective shipping. The low-profile design (without a shroud or radome) keeps the antenna lightweight for easier handling and mounting, supporting streamlined backhaul rollouts.
