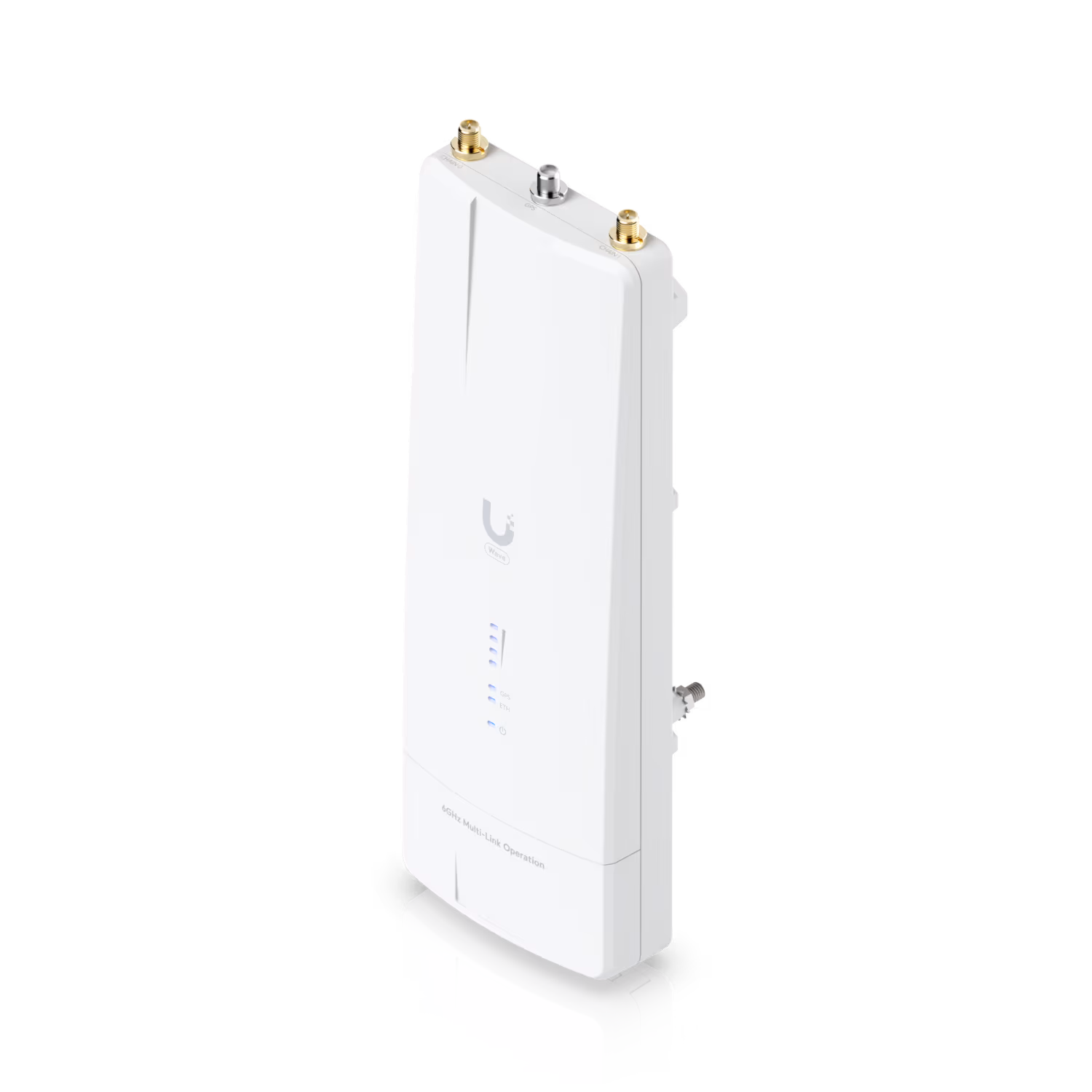

The Wave MLO6 is a high-performance 5 GHz + 6 GHz WiFi 7-based wireless radio with Multi-Link Operation (MLO) technology designed for enhanced throughput and reliable connectivity.

Important Note:
• The 6 GHz radio is disabled by default.
• A permanent internet connection is required for 6 GHz link operation.

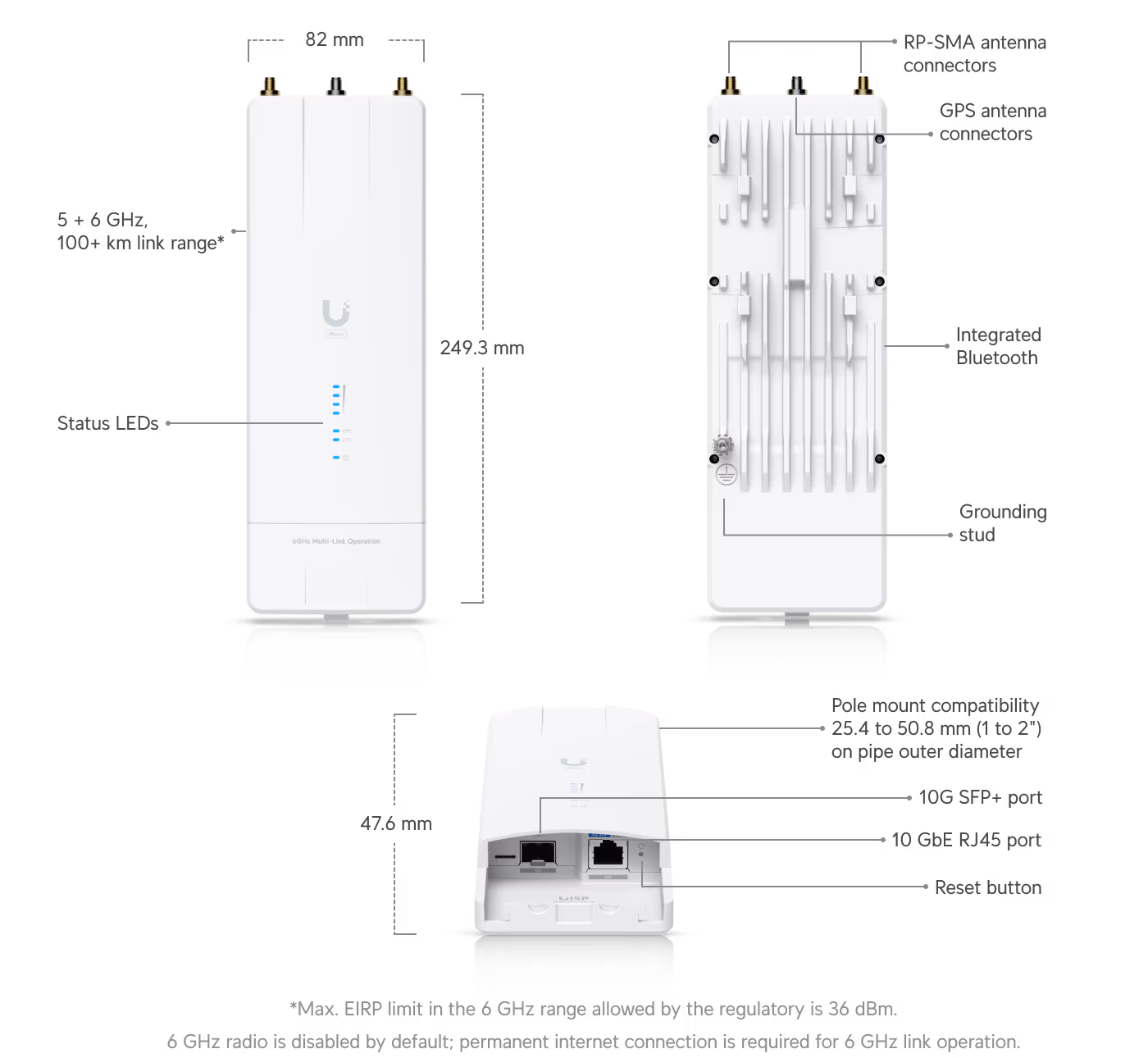

Mechanical Specifications

Dimensions:
• 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")

Weight:
• Without mount: 575 g (1.27 lb)
• With mount: 595 g (1.31 lb)

Enclosure Material:
• Aluminum alloy
• UV-resistant polycarbonate

Mount Material:
• Stainless steel strap
• UV-resistant polycarbonate universal bracket

Mounting:
• Pole mount

Supported Pole Diameter:
• 1–2" (25.4–50.8 mm)

Weatherproof Rating:
• IPX6

Hardware Specifications

Processor:
• Quad-core IPQ5322 at 1.5 GHz

Memory:
• 1 GB

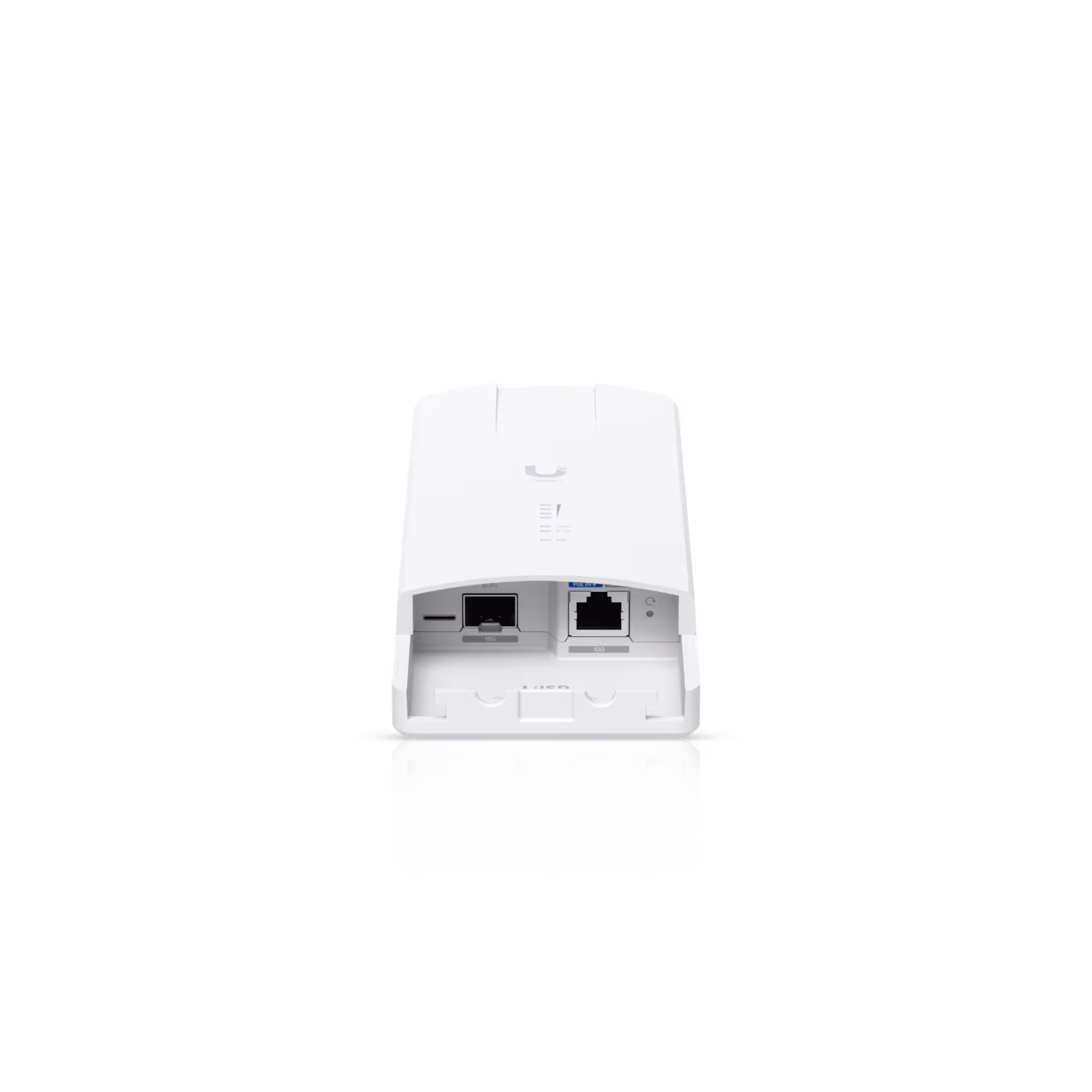

Networking Interfaces:
• (1) 10 GbE RJ45 port
• (1) 10G SFP+ port

Maximum Power Consumption:
• 20W

Power Method:
• Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Supported Voltage Range:
• 44–54V DC
• 22–27V DC

Included Power Supply:
• 54V DC, 0.56A, 10 GbE PoE adapter

MIMO Configuration:

5 GHz:
• 2x2 MIMO

6 GHz:
• 2x2 MIMO

Maximum TX Power:

5 GHz:
• 24 dBm

6 GHz:
• 24 dBm

GPS:
• Supported

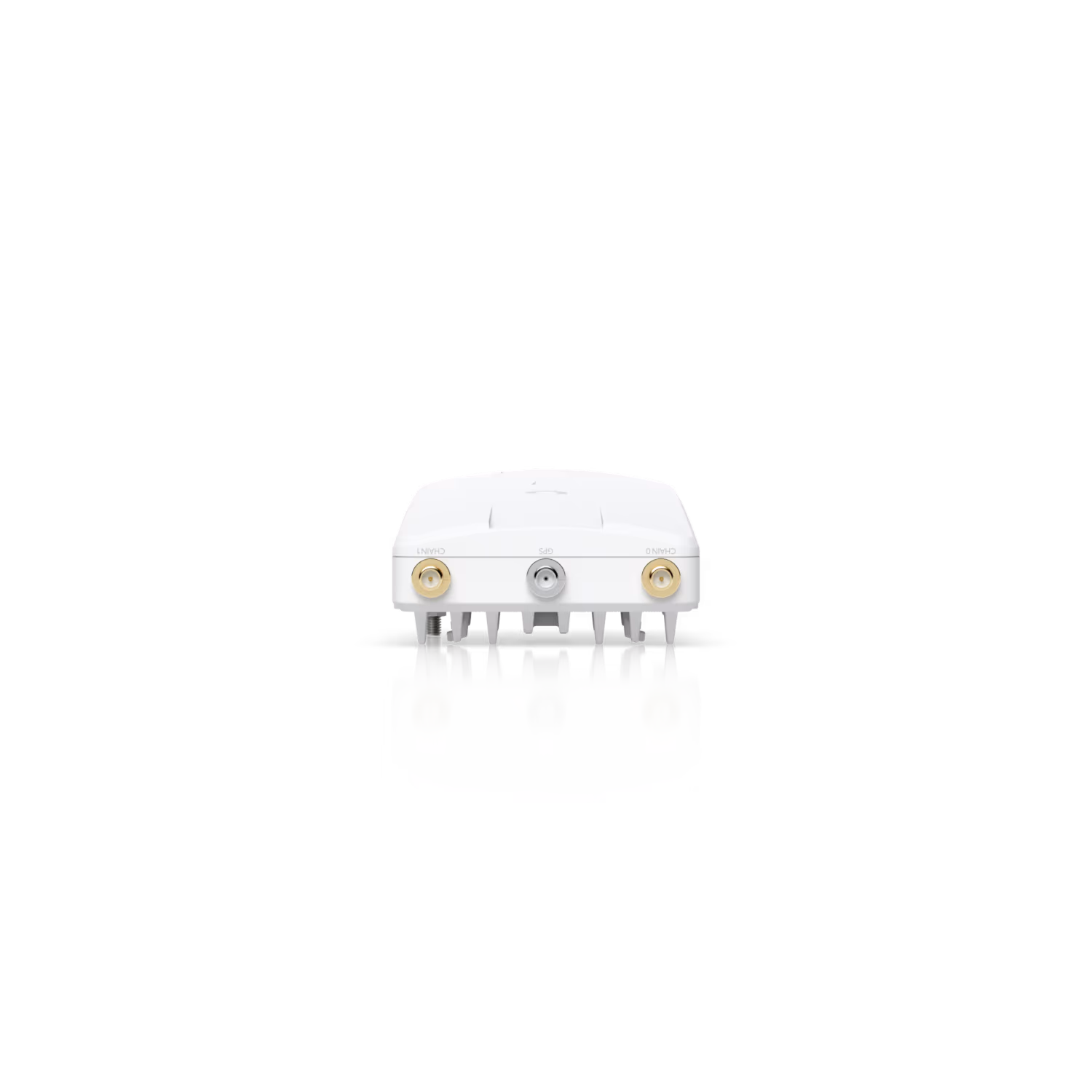

RF Connections:
• (2) Waterproof RP-SMA connectors
• (1) Waterproof GPS connector

Buttons:
• (1) Factory reset button

LED Indicators:
• Power
• Ethernet
• GPS
• Signal strength

Operating Temperature:
• -40°C to 60°C (-40°F to 140°F)

Operating Humidity:
• 5% to 95% noncondensing

Compliance & Certifications:
• NDAA compliant
• FCC certified
• IC certified

Software & Network Features

Operating Mode:
• Point-to-Point (PtP)

UISP Support:
• UISP supported

Utilities:
• Antenna Alignment
• Ping
• Site Survey
• Speed Test
• Traceroute
• Discovery Utility

Network Mode:
• Bridge mode

Security:
• WPA3-PSK (AES)

System Specifications

Total Throughput:
• 8+ Gbps

Maximum Range:
• 100 km (62.1 mi)

Encryption:
• WPA3-PSK (AES)

Radio & Frequency Specifications

Operating Frequencies:

5 GHz:
• 5180 – 5320 MHz
• 5500 – 5700 MHz
• 5745 – 5825 MHz

6 GHz:
• 5945 – 6425 MHz
• 6525 – 6875 MHz

Channel Bandwidth:

Radio 1:
• 20 / 40 / 80 / 160 / 240 MHz

Radio 2:
• 20 / 40 / 80 / 160 / 320 MHz

Supported Modulation Rates:

• BPSK (1/2)
• QPSK (1/2)
• QPSK (3/4)
• 16QAM (1/2)
• 16QAM (3/4)
• 64QAM (2/3)
• 64QAM (3/4)
• 64QAM (5/6)
• 256QAM (3/4)
• 256QAM (5/6)
• 1024QAM (3/4)
• 1024QAM (5/6)
• 4096QAM (3/4)
• 4096QAM (5/6)
