About #B5x

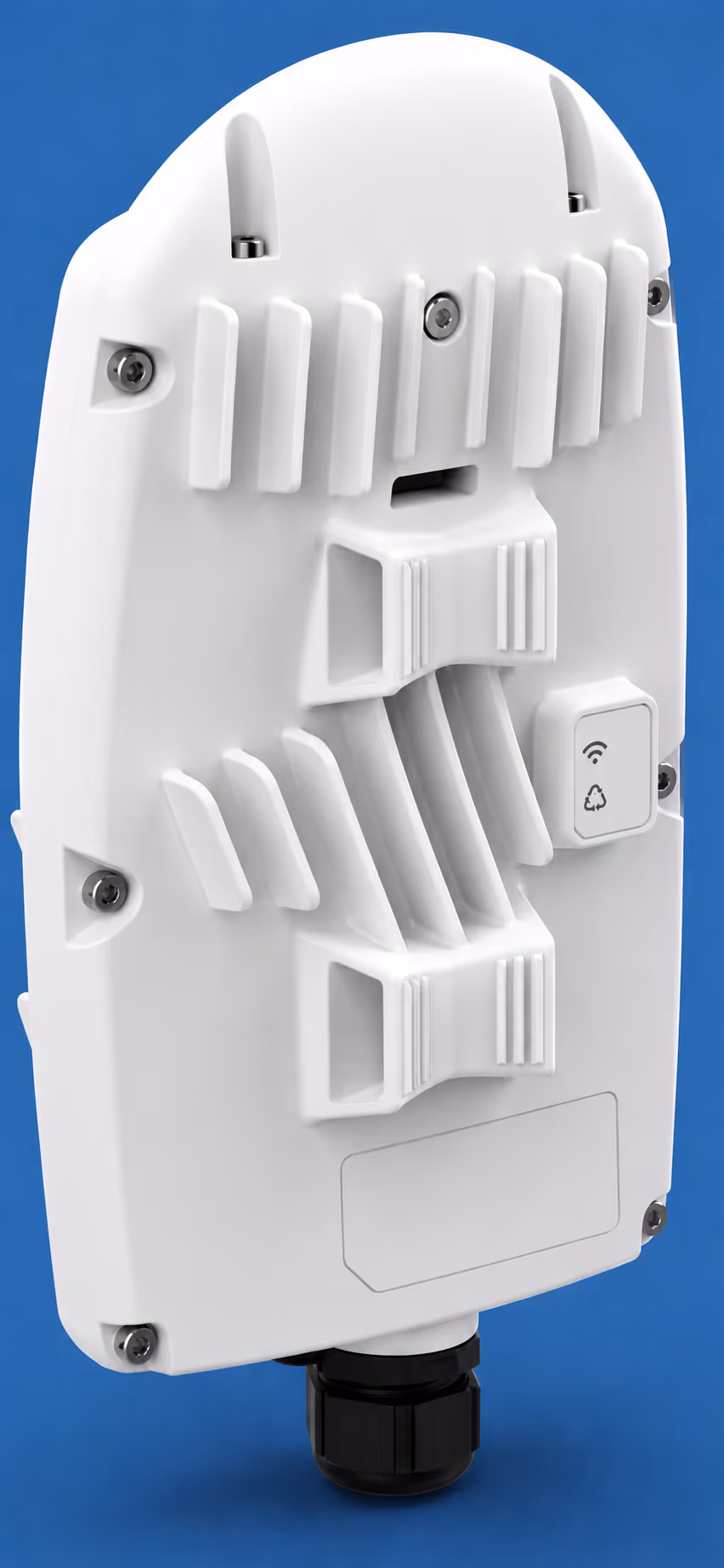

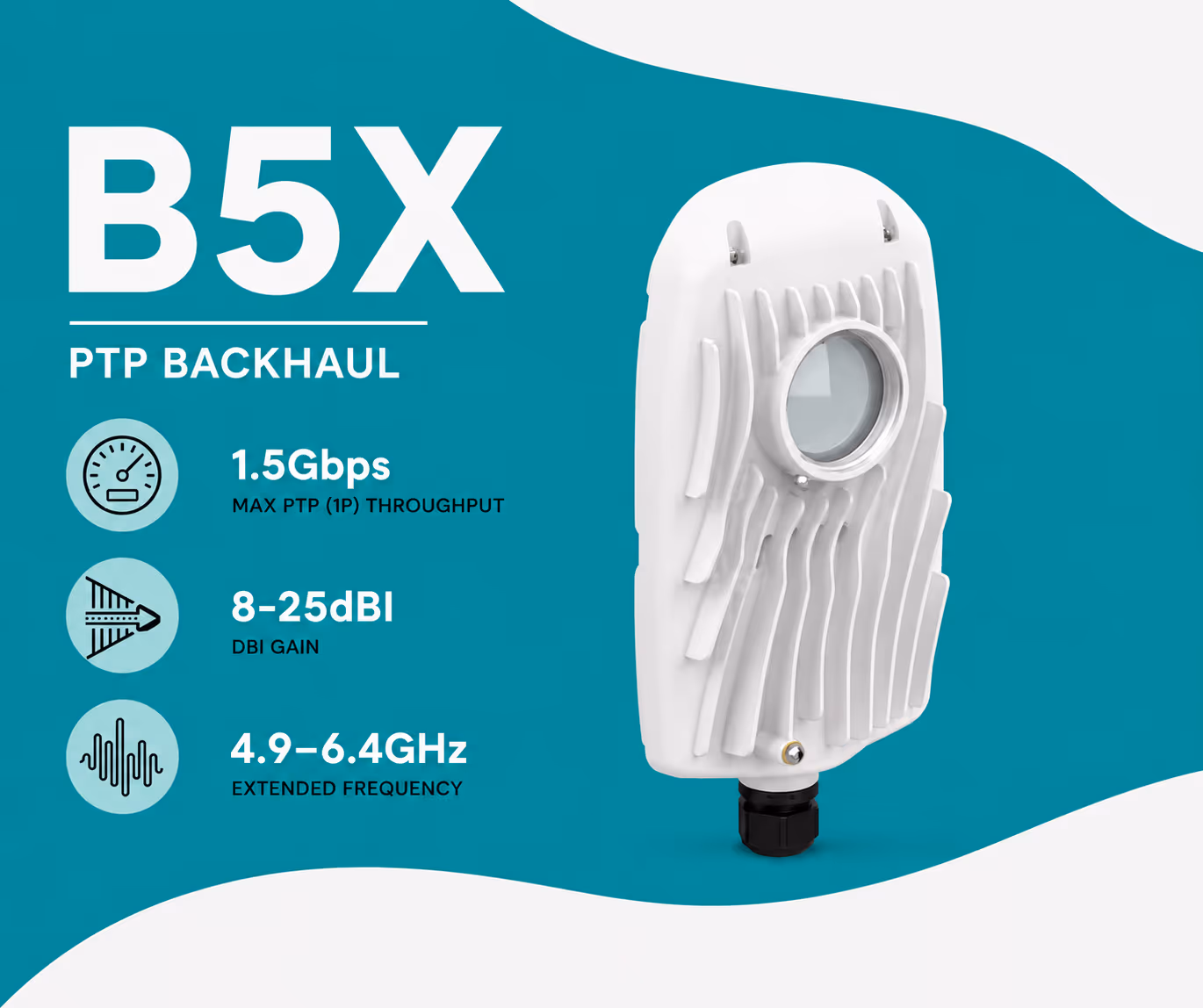

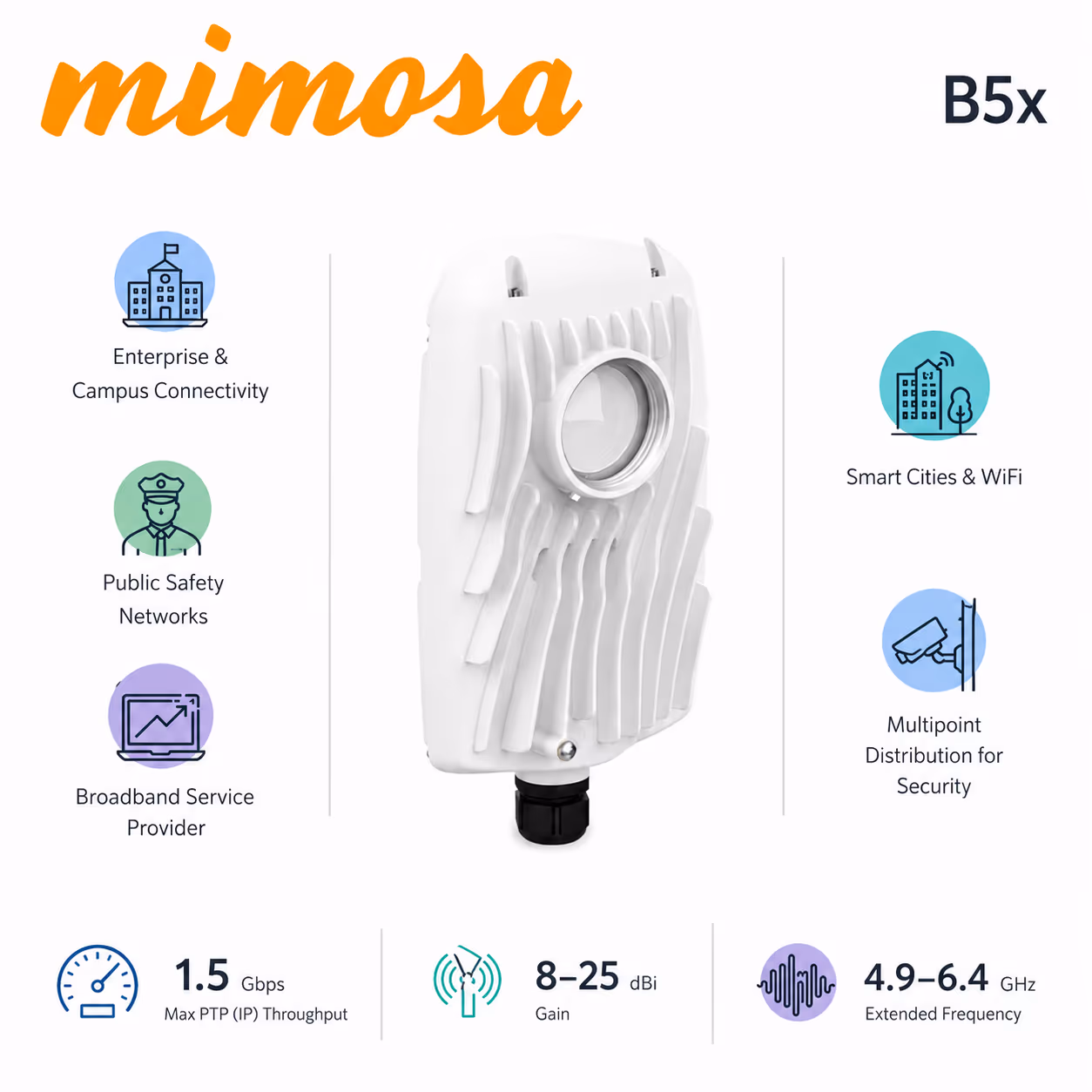

The Mimosa B5x is a modular point-to-point (PTP) wireless backhaul radio designed for WISPs and enterprise networks. It operates across the 4.9–6.4 GHz frequency range and supports up to 1.5 Gbps aggregate throughput with low latency performance. The radio uses 4x4:4 MIMO OFDM technology with modulation up to 256-QAM, helping maintain strong and stable links even in congested RF environments. It features an integrated 8 dBi antenna for short-range deployments and supports interchangeable Mimosa N5-X twist-on antennas for longer-distance and higher-gain applications. The B5x also supports dual-channel operation, GPS synchronization for frequency reuse, and cloud-based network monitoring and management. Built with an IP67-rated enclosure, it is designed for outdoor deployments in harsh weather conditions and can be used for long-distance backhaul, relay links, tower connectivity, and high-capacity wireless infrastructure.
Products tagged #B5x
09M-DISH-MIMOSA-B6X-2PK
0.9m Dish Mimosa B6x Twist-on 2-pack
PTP
backhaul
antenna
06M-DISH-MIMOSA-B6X-2PK
0.6m Dish Mimosa B6x Twist-on 2-pack
PTP
backhaul
antenna
18M-DISH-MIMOSA-B6X-2PK
1.8m Dish Mimosa B6x Twist-on 2-pack
PTP
backhaul
antenna
12M-DISH-MIMOSA-B6X-2PK
1.2m Dish Mimosa B6x Twist-on 2-pack
PTP
backhaul
antenna
#B5x
4 products
Overview
The Mimosa B5x is a high-performance point-to-point backhaul radio designed for WISPs and enterprise networks. It delivers fast, reliable wireless connectivity with support for long-distance links, modular antennas, and high-capacity throughput in the 4.9–6.4 GHz frequency range.
Features
- Frequency Range: 4.9-6.4 GHz
- Max Channel Width: 80 + 80 MHz
- Max Modulation Rate: 256-QAM
- MIMO: 4x4 (Dual Link Operation: 2 independent dual-stream radios operating on non-contiguous frequencies)
- Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
- Wireless Protocols: Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots
- Max Output Power: 30 dBm (1x mode, i.e. single freq) 27 dBm (2x mode, i.e. dual freq)
- Outdoor Rating: IP67
