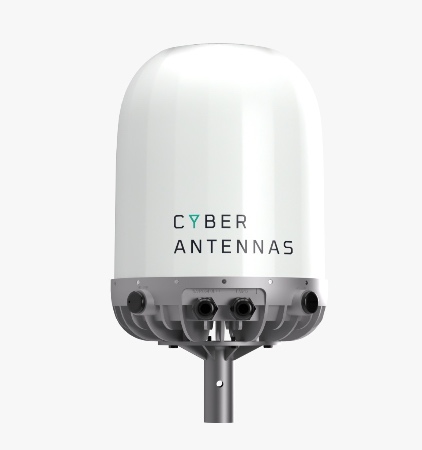

T2 Relay
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Product Description:

Designed as a self-organizing network (SON) mesh node with integrated access and backhaul (IAB) capabilities, the T2 Relay is uniquely capable of massively scaling fixed wireless point-to-multipoint networks because it features four radios and the wireless backhaul alternates between 6 GHz high and 6 GHz low channels, enabling it to simultaneously transmit and receive without self-interference. It also supports 5 GHz for public Wi-Fi access and 2.4 GHz for smart city solutions and Internet of Things (IoT) applications.
T2 Relay
T2 Relay

Model Number: SR7161

High capacity quad-band (2/5/6L/6H) Wi-Fi 7 wireless mesh relay with integrated 4x4 omnidirectional antennas.

Features

  • •
    Wi-Fi 7 BE
  • •
    Multi-gigabit speeds
  • •
    Quad-band (2/5/6L/6H)
  • •
    16 data streams
  • •
    Integrated 4x4 omni antenna
  • •
    320 MHz channel widths
  • •
    4K-QAM
  • •
    Channel puncturing
  • •
    IP67 weather rating
  • •
    ISPApp cloud management

Documentation

Massively Scalable

Cyber Antennas platform achieves exceptional scalability by automatically forming a three-tier star topology. By strategically alternating wireless backhaul channels between the 6 GHz low and high bands, Cyber Antennas platform significantly reduces interference and optimizes channel reuse. This design increases network density, expands coverage seamlessly, and enhances throughput, enabling the network to efficiently support hundreds of connected devices without significant performance degradation.

Alternating Wireless Backhaul Channels

By alternating between 6 GHz high and low channels and automatically organizing into a star topology, the T2 relay is able to scale beyond traditional mesh networks.

Advanced Digital Beamforming (DBF)

Cyber Antennas uses Qualcomm's advanced digital beamforming technology, dynamically steering signals to devices, optimizing link stability, enhancing signal clarity, and significantly improving coverage and performance in challenging RF environments.

Optimized Airtime Management

Cyber Antennas’s advanced Wi-Fi 7 features such as Orthogonal Frequency Division Multiple Access (OFDMA, enhancing simultaneous connections) and 4x4 multi-path with Multi-user Multiple Input Multiple Output (MU-MIMO), improving multiple-device communication) ensure optimal airtime efficiency.

Multi-gigabit Speeds

Cyber Antennas T2 Relay delivers faster speeds and is a perfect alternative to Ubiquiti AirMAX, LTU, and Cambium ePMP 4500 & ePMP 4600 by utilizing Wi-Fi 7 innovations to maximize speed, throughput, and efficiency.

320 MHz Channels in 6 GHz

Cyber Antennas T2 Relay supports ultra-wide 320 MHz channels in the 6 GHz band, delivering significantly higher bandwidth and capacity compared to narrower channels used by previous-generation PtMP unlicensed technologies, such as Ubiquiti AirMAX & LTU, Cambium ePMP, and Tarana G1. This enhanced bandwidth enables unmatched throughput, ideal for high-density deployments and robust wireless backhaul applications.

4K Quadrature Amplitude Modulation (4K QAM, 12x/13x)

4K QAM, a new modulation technique introduced with Wi-Fi 7, boosts throughput by packing more information into each wireless transmission. Under optimal conditions, it achieves up to 50% greater data capacity per transmission compared to earlier Wi-Fi 5 and Wi-Fi 6 modulation methods.

16 data streams

The T2 Relay delivers industry leading speeds by using four frequency bands and four spatial streams per band for unrivaled parallel data flow.

Simple to Install and Manage

Cyber Antennas is easier to install than Ubiquiti AirMAX, LTU, Wave, and Cambium ePMP 4500 & 4600 because the stations automatically and securely connect to the access points, and cloud adoption is simple using QR codes.

Plug-and-Play Deployment

Automatic AP detection, QR code cloud adoption, and a preferred access point lists make setup fast and seamless.

3-Tier Self-organizing Network (SON)

Cyber Antenna's 3-tier self-organizing network simplifies deployment by eliminating manual setup, automatically configuring itself, optimizing routes, and self-healing to ensure reliable coverage in the toughest environments.

Adapts to Changes in the Environment

Cyber Antenna' carrier-grade IP67-rated equipment combines a self-organizing network (SON), advanced antenna design, and digital beamforming (DBF) to enhance signal quality and adapt to environmental changes like foliage or shifting conditions. This reduces maintenance demands and lowers total cost of ownership.
