#C5x
حول #C5x

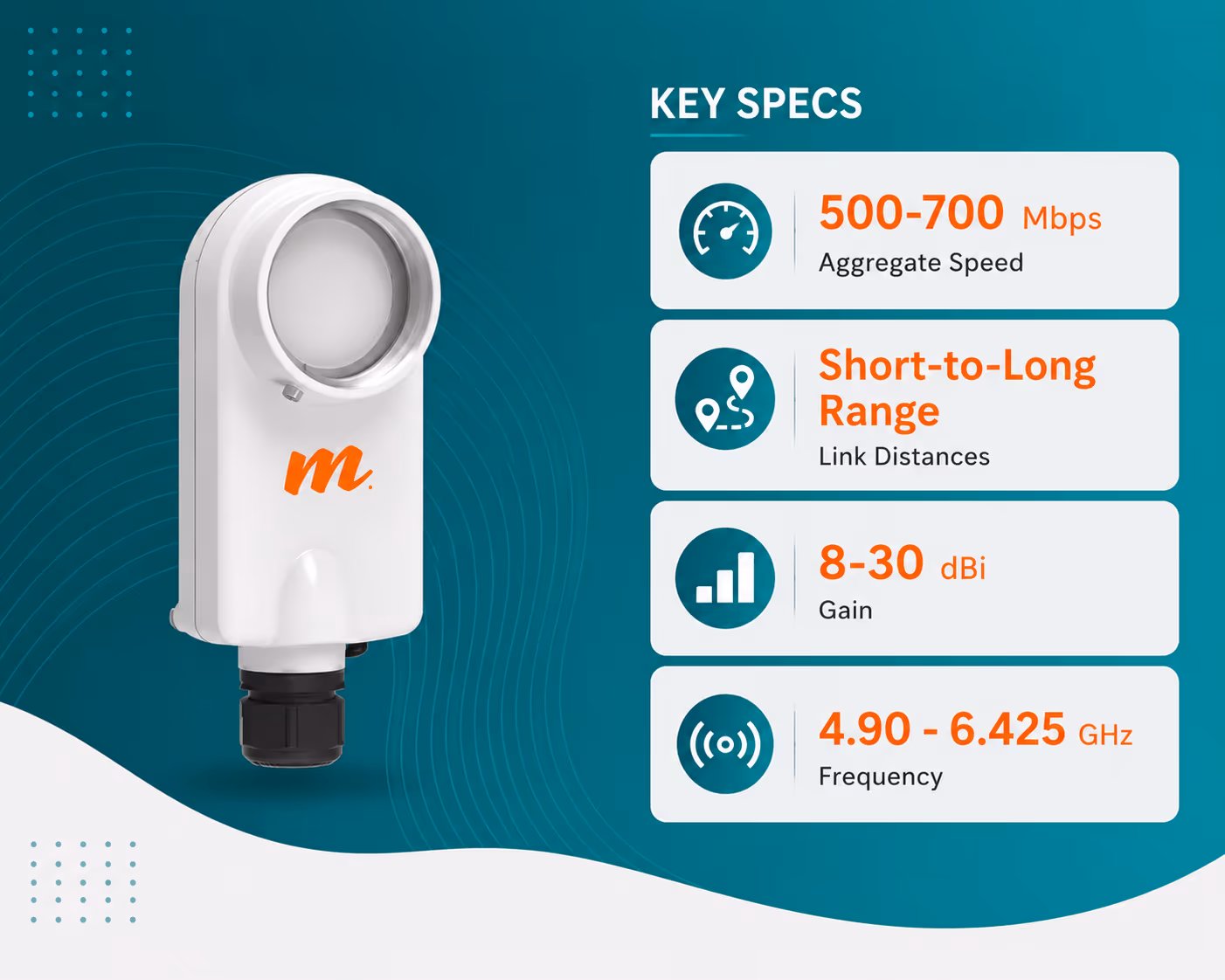

The Mimosa C5x is a small but powerful client and backhaul radio designed for both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) wireless deployments. Known for its versatility, it features five modular twist-on antenna options that allow operators to adapt the radio to different network requirements and coverage scenarios. Its extended frequency support from 4.9 GHz to 6.4 GHz helps improve deployment flexibility while delivering strong noise immunity in crowded wireless environments. Because of its combination of flexibility, durability, and cost efficiency, the C5x has become a popular solution for 5 GHz wireless network deployments.
Built for high performance, the C5x delivers reliable wireless speeds of up to 500 Mbps in PTMP mode and up to 700 Mbps in PTP mode. This makes it suitable for applications that require stable and efficient data transmission over long distances or across multiple subscriber connections. Its advanced RF design helps maintain strong performance even in areas with heavy interference, allowing network operators to maximize throughput and maintain dependable connectivity.
The C5x also stands out for its impressive RF performance and interference rejection capabilities. Encased in a durable metal housing and paired with custom-designed horn and Cassegrain antennas, the radio is engineered to minimize localized noise and improve signal isolation. The antennas in the N5-X family are optimized with excellent sidelobe rejection, helping reduce unwanted interference from surrounding wireless devices. This breakthrough front-to-back and front-to-side performance allows the C5x to maintain cleaner and more stable wireless links in high-density environments.
Designed for harsh outdoor conditions, the C5x features a die-cast aluminum enclosure, dual-pole mounting system, and industrial-grade twist-on antennas that provide strong durability and secure installation. Its IP67-rated construction protects the device from dust, rain, and extreme weather conditions, making it ideal for long-term outdoor deployments. Despite its rugged build, the C5x remains compact and lightweight, allowing for easier installation and maintenance in various wireless networking scenarios.
المنتجات الموسومة بـ #C5x
09M-DISH-MIMOSA-B6X-2PK
0.9m Dish Mimosa B6x Twist-on 2-pack
صُممت هذه الهوائيات لتوفير تكاليف الشحن والاتصال المباشر بأجهزة راديو Mimosa B6x وB5x وC6x وC5x، مما يقلل من فقد الإشارة في وصلات تتراوح بين 10 و20 كيلومترًا. يشمل السعر كلا الهوائيين.
PTP
backhaul
antenna
06M-DISH-MIMOSA-B6X-2PK
0.6m Dish Mimosa B6x Twist-on 2-pack
صُممت هذه الهوائيات لتوفير شحن بأسعار معقولة وتوصيل مباشر بأجهزة راديو Mimosa B6x وB5x وC6x وC5x، مما يلغي فقدان الإشارة في نطاقات تتراوح من 0 إلى 10 كيلومترات. يشمل السعر كلا الهوائيين.
PTP
backhaul
antenna
18M-DISH-MIMOSA-B6X-2PK
1.8m Dish Mimosa B6x Twist-on 2-pack
صُممت هذه الهوائيات لتوفير شحن اقتصادي وتوصيل مباشر وسلس بأجهزة راديو Mimosa B6x/B5x/C6x/C5x، دون أي فقد في الإشارة للوصلات التي تصل إلى 40-80 كم. يشمل السعر كلا الهوائيين.
PTP
backhaul
antenna
12M-DISH-MIMOSA-B6X-2PK
1.2m Dish Mimosa B6x Twist-on 2-pack
صُممت هذه الهوائيات لتوفير تكاليف الشحن، وللاتصال مباشرةً بأجهزة راديو Mimosa B6x/B5x/C6x/C5x دون فقدان الإشارة، وذلك لوصلات تصل إلى 20-40 كم. يشمل السعر كلا الهوائيين.
PTP
backhaul
antenna
#C5x
4 products
نظرة عامة
The Mimosa C5x is a compact yet powerful wireless client and backhaul radio designed for both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) deployments. It supports extended frequency operation from 4.9–6.4 GHz, delivers strong noise immunity, and offers speeds of up to 700 Mbps. Built with a rugged IP67-rated metal enclosure and modular twist-on antenna options, the C5x provides flexible, reliable, and high-performance connectivity for outdoor wireless networks.
المميزات
- Frequency Range: 4.9 – 6.4 GHz
- Maximum Throughput: Up to 700 Mbps IP throughput (866 Mbps PHY)
- Wireless Protocols: Mimosa SRS (GPS Sync), WiFi Interoperability
- Operation Modes: Point-to-Point (PTP) Backhaul, Point-to-Multipoint (PTMP) Client
- MIMO Technology: 2×2:2 MIMO OFDM
- Modulation: Up to 256-QAM
- Channel Widths: 20 / 40 / 80 MHz (tunable in 5 MHz increments)
- Maximum Transmit Power: 27 dBm
- Security: WPA2-PSK, WPA2 Enterprise (802.1X), AES Encryption
- Management: Mimosa Cloud, SNMPv2, Syslog, HTTPS, Web UI
- Outdoor Rating: IP67 ruggedized enclosure
