Product Description:
The 0.6m Dish Class 2 is a high-gain, precision-engineered dual polarity deep dish antenna built for long-range point-to-point (PTP) licensed and unlicensed microwave backhaul from 5.15– 7.125 GHz with exceptional VSWR ≤1.4 across its primary band and VSWR ≤1.8 for public safety 4.9 GHz.

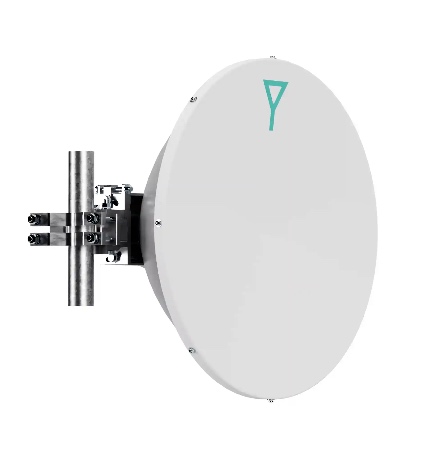

0.6m Dish Class 2
Model Number: 06M-DISH-C2
The 0.6m Dish Class 2 is a high performance wideband (5.15-7.125 GHz) microwave backhaul antenna.
Features
- •Size: 0.6m (2-ft)
- •Frequency range: 5.15 - 7.125 GHz
- •Max gain: 30 dBi
- •VSWR: ≤1.4
- •Port isolation: ≥40 dB
Documentation
Carrier-grade Microwave Backhaul Antenna
Cyber Antenans 0.6m Dish Class 2 is a high-gain, precision-engineered dual polarity deep dish antenna built for long-range point-to-point (PTP) licensed and unlicensed microwave backhaul from 5.15–
7.125 GHz with exceptional VSWR <1.4 across its primary band and VSWR <1.8 for public safety
4.9 GHz. Dual female N connectors ensure easy connections with leading radios from Ubiquiti AF5XHD, Wave MLO5, MLO6, Mimosa B5c, B6x, C5c, C6x and Cambium ePMP Force 4600c, 400.
Deep Dish Design
The deep dish design with an included foam radome improves the front-to-back ratio, enhancing side lobe performance, frequency reuse, and noise resistance. In addition, it improves aerodynamic performance, reducing wind load and enabling the use of larger, high-gain antennas for better signal-to-noise ratios, which support faster modulation rates, greater capacity, and higher speeds.
