#ePMP 4600L
Acerca de #ePMP 4600L

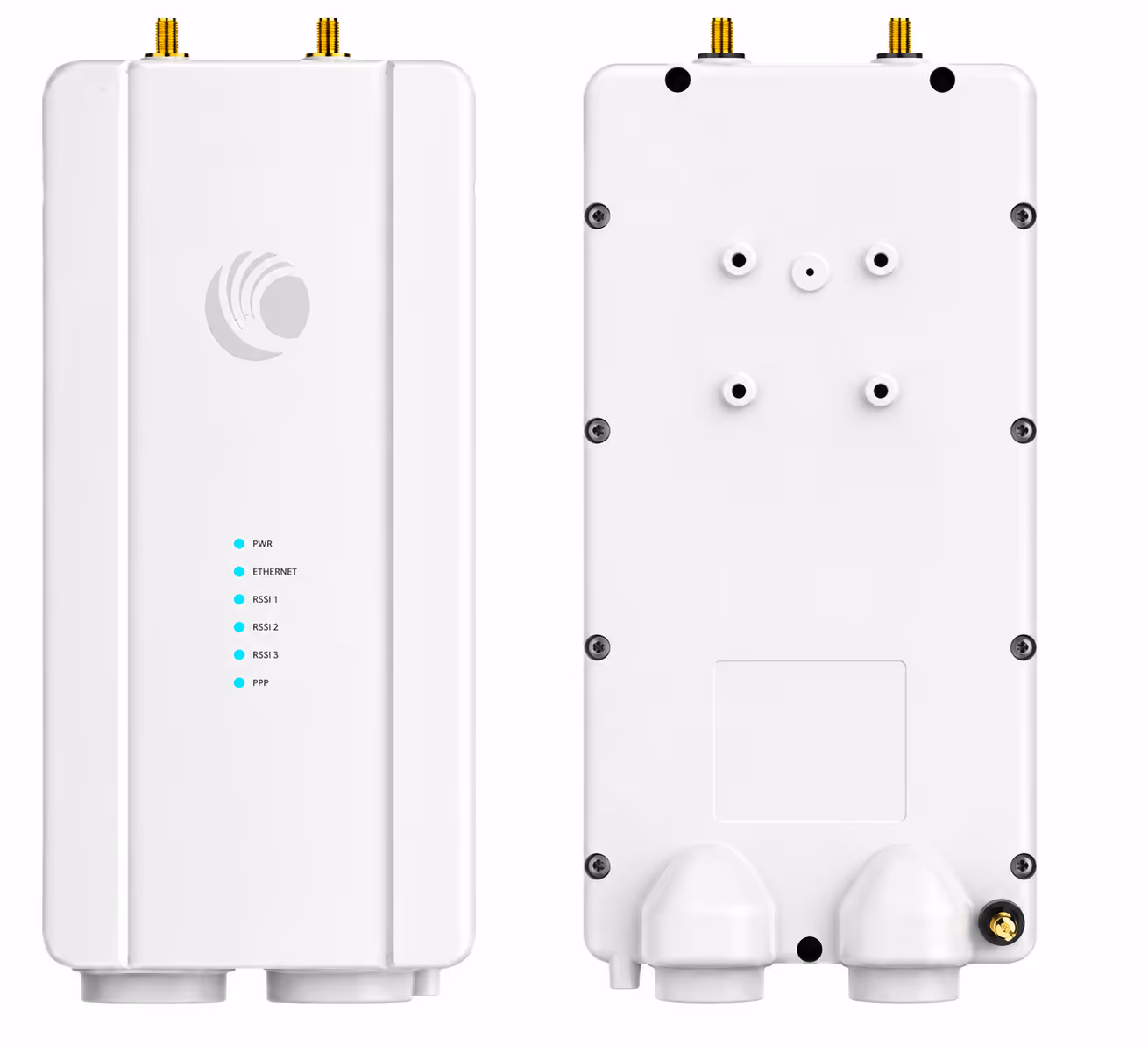

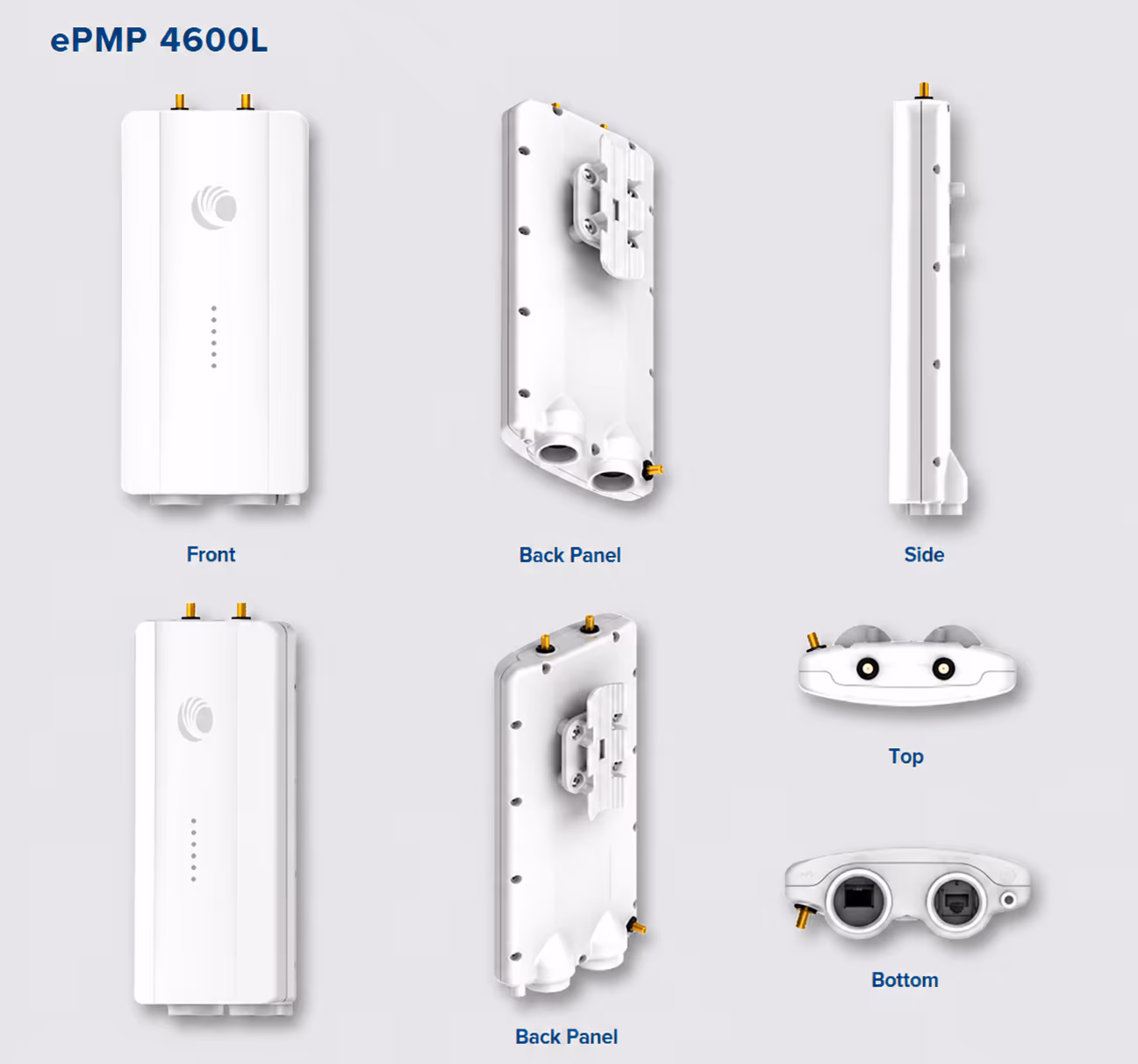

The Cambium Networks ePMP 4600L is a next-generation Wi-Fi 6E fixed wireless access point built to deliver fiber-like broadband speeds for modern WISP and enterprise networks. Powered by a 2x2 MIMO architecture with advanced OFDMA and TDMA scheduling, the platform is engineered to maximize spectral efficiency, minimize latency, and maintain stable performance in high-density and interference-prone environments.
Supporting wideband operation from 5.725 GHz to 7.125 GHz (region dependent), the ePMP 4600L leverages both 5 GHz and 6 GHz spectrum availability to increase network capacity and reduce congestion. With support for ultra-wide 160 MHz channels and 4096-QAM (MCS 13), the access point can achieve multi-Gbps aggregate throughput, making it ideal for high-demand broadband deployments and bandwidth-intensive applications.
Integrated GPS synchronization and TDD operation help reduce self-interference in collocated tower deployments, enabling improved frequency reuse and scalable sector expansion. The platform supports up to 120 subscriber modules per sector and interoperates seamlessly with ePMP Force 4600 subscriber modules for efficient network growth.
An integrated SFP+ uplink provides high-speed wired backhaul connectivity capable of sustaining peak wireless performance. Deployment and ongoing network management are simplified through Cambium’s cnMaestro management platform and LINKPlanner design tools, helping operators optimize coverage, performance, and operational efficiency.
Backed by a 3-year hardware warranty, the ePMP 4600L is designed for WISPs seeking reliable, scalable, and future-ready multi-gigabit wireless infrastructure.
Productos etiquetados #ePMP 4600L
A60
60° Asymmetrical Horn
Antena de bocina asimétrica de 60°, todo incluido, liviana y de alto rendimiento para brindar cobertura de banda ancha de 5 y 6 GHz con una plataforma de antena WISP escalable.
antenna
6 GHz
5 GHz
A20
20° Asymmetrical Horn
Antena de bocina asimétrica de banda ancha de 20-30° de alto rendimiento, ligera y todo incluido, para 5 y 6 GHz, diseñada para ampliar las redes WISP en entornos ruidosos.
antenna
6 GHz
5 GHz
S30
30° Symmetrical Horn
Antena de bocina simétrica de 30° de banda ancha de 5 y 6 GHz, todo incluido, ligera y de alto rendimiento
PTP
backhaul
antenna
#ePMP 4600L
3 products
Resumen
The Cambium Networks ePMP 4600L is a high-capacity Wi-Fi 6E fixed wireless access point designed for dense WISP deployments. Featuring 2x2 MIMO, 160 MHz channel support, 4096-QAM, GPS synchronization, and multi-Gbps throughput, it delivers reliable broadband performance across the 5 GHz and 6 GHz spectrum while supporting up to 120 subscribers per sector.
Características
- Frequency Range: 5.925–7.125 GHz
- Max Channel Width: 160 MHz
- Max Modulation Rate: 4096-QAM
- Max Output Power: Up to +28 dBm
- Max Throughput: Up to 2 Gbps Aggregate
- Modes: PTMP Access Point
- Wireless Protocols: Wi-Fi 6E, 2x2 MIMO, OFDMA
- Subscriber Capacity: Up to 120 End Users
- Synchronization: GPS Sync Support
- Security: 128-bit AES Encryption
- Outdoor Rating: IP67 Weather Resistant
